33-03. FUEL PLANNING
Всего заданий: 158
В режиме ОБУЧЕНИЕ показываются все задания дисциплины с предъявлением правильных ответов. Для перехода к следующему заданию нажать кнопку «Далее».
Заданий на экзамен: 30
В режиме ЭКЗАМЕН правильные ответы не показываются, переход на следующее задание происходит автоматически, после выбора ответа.
1. (Refer to figure 033-52)
Find the fuel required given the following:
Cruise: Mach 0,78 at FL280
Mass: 50.000 kg
Distance: 200 NM
Headwind component: 30 kts
.

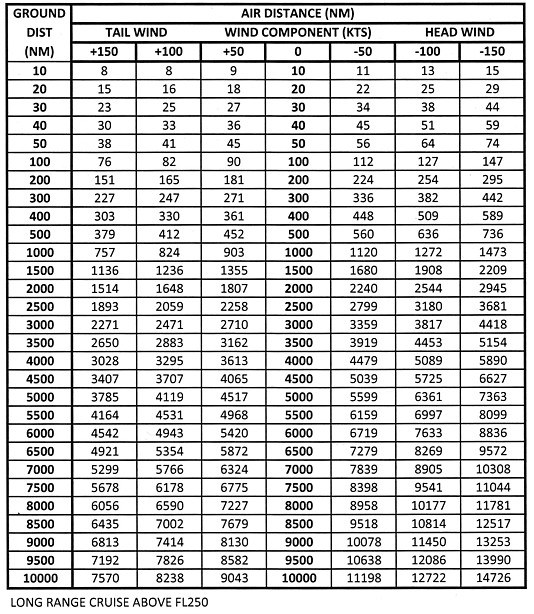

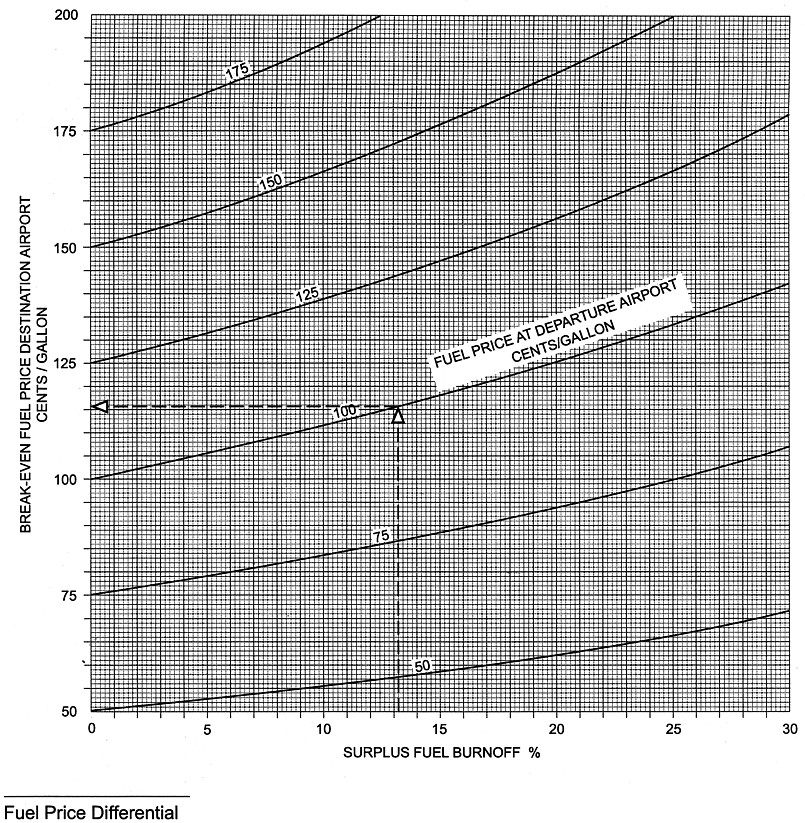

2. (Refer to figures 033-59, 033-58 and 033-28)
An aircraft is tasked to fly a 0,74 Mach cruise at FL310, ISA +15 °С with a Landing Weight (Without Tankered Fuel) of 40.000 kg. The sector distance is 1.000 NGM, wind component +25 kts.
Calculate the Break Even Fuel Price at Destination if the Fuel price at Departure is 85 cents/US Gallon.
3. (Refer to figure 033-16)
An aircraft climbs out from an aerodrome at MSL to FL250, under ISA +20 °С conditions. If the brake re lease weight is 60.000 kg, what is the fuel and ground distance covered with a 40 kts tailwind?
4. (Refer to figure 033-28) For a long distance flight at FL390, «Long Range» regime, divided into four flight legs with the following characteristics: Leg 1 Ground distance: 2.000 NM, Headwind component: 50 kts Leg 2 Ground distance: 1.000 NM, Headwind component: 30 kts Leg 3 Ground distance: 500 NM, Tailwind component: 100 kts Leg 4 Ground distance: 1.000 NM, Headwind component: 70 kts The air distance of the entire flight is approximately:
.
5. (Refer to figure 033-40) At 6.000 ft what is the range of the aircraft at full throttle with 2.500 RPM set?
